Medical Equipment Batteries: Why Do Hospitals Trust LFP Over NMC?

Your medical device failing in a critical moment is every manufacturer's nightmare. The battery is often the weak link. But choosing the right one is simpler than you think when you see what hospitals prefer.

Hospitals often choose Lithium Iron Phosphate (LFP)¹ batteries over Nickel Manganese Cobalt (NMC)² for medical equipment. This is because LFP offers superior thermal safety, a much longer cycle life, and an easier path to regulatory compliance, resulting in a lower total cost of ownership (TCO).

When I talk to clients like Michael, who procure components for high-stakes medical devices, the conversation always turns to risk management. It's not just about the upfront cost of a battery; it's about the long-term cost of failure, maintenance, and compliance. They need a power source that is not just reliable, but demonstrably safe and economically sound over the entire lifespan of the equipment. This is where the chemistry inside the battery becomes the most important factor in their decision. Let’s dive into why the "conservative" choice is often the smartest one.

Why is LFP safer than NMC?

You're worried about battery safety, especially in a hospital where failure is not an option. A thermal event could be catastrophic. The choice of battery chemistry is your first line of defense.

LFP is chemically more stable than NMC. Its strong phosphate-olivine structure³ is less likely to release oxygen during stress, which significantly reduces the risk of thermal runaway and fire. This inherent safety makes it a more reliable choice for critical medical applications.

In my years of developing custom battery solutions, I've seen firsthand how different chemistries react under pressure. The core of LFP's safety lies in its strong phosphorus-oxygen (P-O) bond. This bond is incredibly stable and holds onto its oxygen atoms tightly, even when the battery is abused through overcharging, short-circuiting, or physical damage. Without the release of oxygen, a fire struggles to start or spread. This is what we call a high thermal runaway threshold, which for LFP is around 270°C.

NMC, on the other hand, is designed for high energy density⁴. To achieve this, its chemical structure is less stable. Under similar stress conditions, it can break down at a lower temperature (around 210°C) and release oxygen, which can act as fuel for a fire.

This isn't just a technical detail; it has huge real-world consequences for medical device manufacturers. In regulated markets like Europe (under EU MDR) or the US, you don't just have to be safe, you have to prove you're safe. LFP's stability makes this process much simpler and cheaper. It's the path of least resistance for compliance, saving countless hours and dollars in testing and risk assessment.

What is the downside of an LFP battery?

So, LFP sounds perfect for safety-critical devices. But you might be wondering what the trade-off is. Choosing LFP without understanding its main limitation can lead to design challenges down the road.

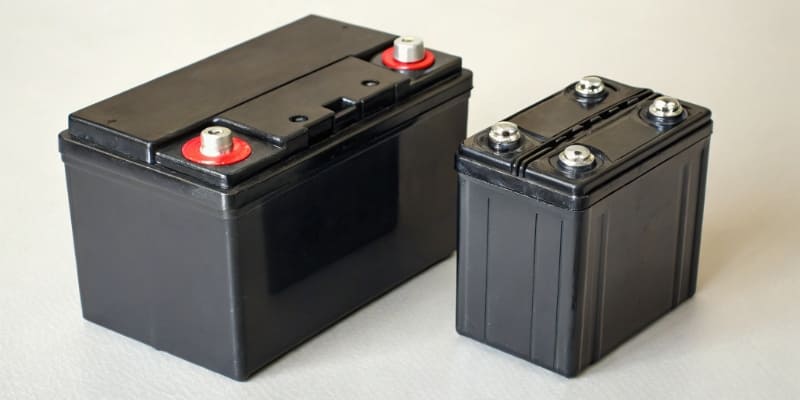

The primary downside of an LFP battery is its lower energy density compared to NMC. This means that for the same amount of energy, an LFP battery will be larger and heavier, which can be a constraint for portable or space-sensitive medical devices.

Energy density is the name of the game in portable electronics. It’s a measure of how much power you can pack into a certain size or weight. While NMC batteries can offer 150-250+ Watt-hours per kilogram (Wh/kg), LFP batteries are typically in the 90-160 Wh/kg range. For a medical device designer, this is a critical trade-off. If you're building a compact, handheld diagnostic tool, the extra bulk and weight of an LFP battery might be a deal-breaker. You simply might not have the space for it.

Another point to consider is its performance in extreme cold. Standard LFP chemistry can lose a significant amount of its capacity at sub-zero temperatures. At Litop, we have developed specialized low-temperature LFP batteries to overcome this, but it's an important factor for devices used in varied climates.

Finally, LFP has a very flat voltage discharge curve. This means the voltage stays very consistent for most of the discharge cycle and then drops off sharply at the end. While stable voltage is good for the device, it makes it harder for a simple Battery Management System (BMS)⁵ to accurately predict the remaining charge. It requires a more sophisticated BMS with a coulomb counting feature to get a precise state-of-charge reading.

What are the disadvantages of NMC batteries?

NMC batteries offer that tempting high energy density, perfect for sleek, portable devices. But the hidden costs and risks can be a major liability, especially in the medical field where long-term reliability is paramount.

The main disadvantages of NMC batteries are their shorter cycle life and lower thermal stability compared to LFP. This leads to more frequent replacements and a higher risk profile, ultimately increasing the total cost of ownership and complexity of compliance.

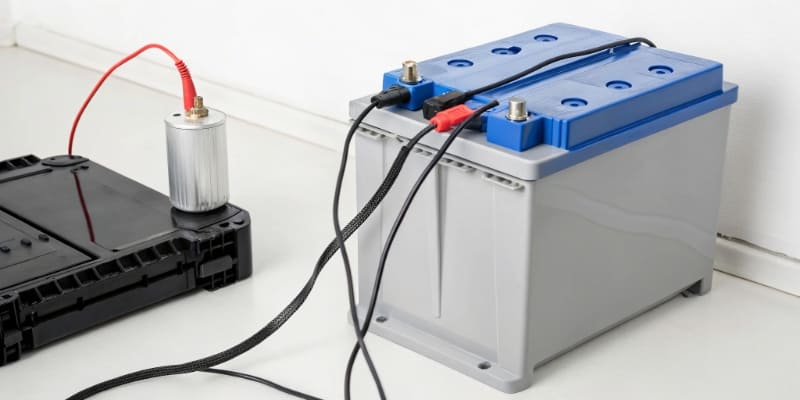

When hospitals and medical facilities evaluate equipment, they don't just look at the purchase price. They calculate the Total Cost of Ownership (TCO)⁶. This is where NMC batteries often fall short in stationary or frequently-used mobile equipment. An NMC battery might last for 1,000-2,000 charge cycles before its capacity significantly degrades. An LFP battery, in contrast, can easily deliver 3,000, 5,000, or even more cycles. For a piece of equipment that's charged every single day, that's the difference between replacing the battery every three years versus every ten years. Fewer replacements mean lower maintenance costs, less downtime, and reduced disruption to critical care.

The safety factor also has a direct financial impact. To manage the higher thermal risks of NMC, you need a more complex and robust BMS with multiple redundant safety features. The certification process is also more stringent and expensive. These are costs that are built into the device from the very beginning.

Furthermore, the materials used in NMC batteries, particularly cobalt, are a source of price volatility and supply chain concerns. LFP relies on iron and phosphate, which are abundant, cheaper, and more ethically stable resources. For any procurement manager planning for the long term, this stability is a significant advantage.

What is the holy grail of battery technology?

We are always looking for the next breakthrough in technology. But chasing unproven solutions can be a huge risk. It's more useful to understand what the ideal battery would look like to guide our current choices.

The "holy grail" of battery technology would combine the high energy density of NMC with the safety and longevity of LFP. It would also offer ultra-fast charging, be low-cost, and be made from sustainable materials. Solid-state batteries are the leading contender for this future.

When my engineering team and I dream about the perfect battery, we're talking about a technology that solves all the current trade-offs. Imagine a battery with the power density to make a portable MRI machine feel as light as a tablet, but with the safety profile of LFP, making it impossible for it to catch fire. This ideal battery would charge in minutes, not hours, and last for decades without degrading. It would be built from materials that are cheap, abundant, and completely recyclable.

This is the promise of technologies like solid-state batteries⁷. By replacing the flammable liquid electrolyte found in current lithium-ion batteries with a solid material, they can theoretically offer a step-change in both safety and energy density. They have the potential to store more energy in a smaller space while eliminating the risk of fire.

However, we must be realistic. Solid-state technology is still primarily in the research and development phase. There are significant challenges in manufacturing them at scale, ensuring their long-term durability, and bringing their cost down to a competitive level. For now, it remains on the horizon. That's why for today's critical applications, the decision can't be based on a future promise. It has to be based on the proven, reliable, and safe technology that is available right now.

Conclusion

For medical applications, the battery choice goes beyond a simple spec sheet. While NMC offers high energy density, LFP is the trusted choice for hospitals because of its superior safety, longer life, and easier path to compliance. This makes it the smarter, more reliable, and cost-effective solution long-term.
