Struggling to choose between 18650 and 21700 cells? The wrong choice can hurt performance and raise costs. I will help you understand the key differences to make the right call.
The 21700 battery offers higher energy density and power, leading to longer runtime and lower system costs. However, its larger size creates compatibility issues and heat dissipation challenges, making it less suitable for compact devices that prioritize thermal management and a smaller footprint.
Over my years in the battery industry, clients often ask me which cell is "better." The truth is, there's no simple answer. I had a client, let's call him Michael, who was developing a new high-performance medical device. He was convinced he needed the latest 21700 cells. But after we walked through his specific needs for size and thermal stability, we realized the trusted 18650 was still the better fit for that particular project. It's all about matching the battery's strengths and weaknesses to your application. Let's break down what that means for the 21700 battery.
How significant are the main advantages of 21700 batteries compared to traditional 18650 batteries?
Are you leaving performance on the table by sticking with 18650s? You might be sacrificing runtime and increasing system complexity. Let's see just how much better a 21700 can be.
A single 21700 battery can boost capacity by over 35% and system energy density by around 20% compared to a typical 18650. This means you need fewer cells for the same energy, reducing system weight by 10% and overall pack cost by about 9%.

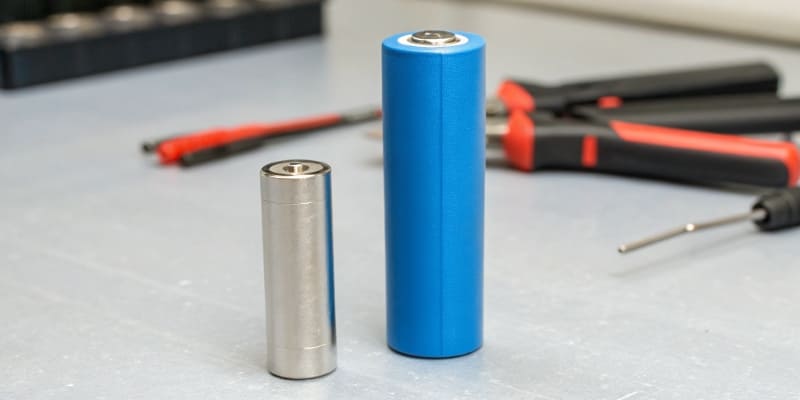

The primary advantage of the 21700 battery comes from its larger physical size—21mm in diameter and 70mm in height, compared to the 18650's 18mm by 65mm. This extra space allows for more active material to be packed inside, leading to a significant jump in performance. For engineers and product designers, this translates into several concrete benefits.
Capacity and Energy Density
A typical 18650 cell has a capacity of around 2.5 to 3.0 Amp-hours (Ah). In contrast, a 21700 cell can reach 3.0 to 4.8 Ah. This is a direct increase of over 35%. This jump allows devices to run longer on a single charge. At the system level, this size increase improves the energy density from roughly 250 Wh/kg to 300 Wh/kg. You get more energy for the same amount of weight.
System-Level Efficiency
The benefits are even clearer when you build a battery pack. To achieve the same total energy, you need about one-third fewer 21700 cells than 18650 cells. Fewer cells mean fewer connections, less welding, and a simpler Battery Management System (BMS)1. This reduces the number of metal and structural parts, leading to a lighter and more cost-effective pack.
Here is a simple table to show the comparison:
| Feature | 18650 Battery | 21700 Battery | Improvement |
|---|---|---|---|
| Typical Capacity | 2.5 - 3.0 Ah | 3.0 - 4.8 Ah | ~35%+ |
| System Energy Density | ~250 Wh/kg | ~300 Wh/kg | ~20% |
| System Cost | Baseline | ~9% Lower | Significant Savings |
| System Weight | Baseline | ~10% Lighter | Lighter End-Products |
These improvements make the 21700 a very attractive option for new product designs where power and runtime are critical.
What are the specific disadvantages of 21700 batteries?
Is the 21700 the perfect solution for everything? Its bigger size comes with hidden problems like heat and incompatibility. These issues can ruin a great product design if you ignore them.
The main drawbacks of 21700 batteries are poor heat dissipation due to a smaller surface-area-to-volume ratio, and physical incompatibility with devices designed for 18650s. The increased weight and potential for reduced cycle life in high-capacity models are also key concerns.
While the benefits of the 21700 are compelling, it's crucial to understand its limitations. These disadvantages are direct results of its larger physical dimensions. Ignoring them can lead to serious design challenges down the road.
Heat Dissipation Challenge
Physics tells us that as an object gets bigger, its volume increases faster than its surface area. For a battery, this means a 21700 cell has less surface area to release the heat it generates compared to its internal volume. During high-rate discharge, a 21700 cell can get significantly hotter than an 18650. In some cases, the temperature can rise by an additional 20%. This excess heat can degrade the battery's health over time and, in extreme cases, pose a safety risk. This is a major concern for devices with poor ventilation.
Compatibility, Size, and Weight

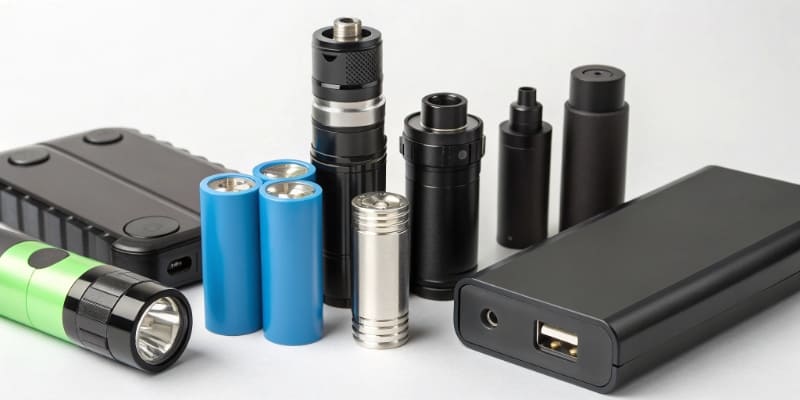

This is the most obvious drawback. A 21700 cell simply will not fit into a product designed for an 18650. This means you cannot simply upgrade an existing product without a complete redesign of the device's housing. At Litop, we often work with clients on custom battery shapes2 precisely because standard cells like the 21700 are too bulky for sleek devices like wearables or compact medical tools. The added weight is also a factor for any portable electronic device.
Cycle Life Trade-offs
There is often a trade-off between energy capacity and longevity. A general rule of thumb is that for every 10% increase in capacity, cycle life might decrease by up to 20%. The highest-capacity 21700 cells may not last as many charge-discharge cycles as a more conservative 18650. For products that need to last for many years of frequent use, this is a critical consideration.
| Disadvantage | Description | Impact on Application |
|---|---|---|
| Heat Dissipation | Smaller surface-to-volume ratio traps heat. | Can cause performance throttling or safety issues in high-drain devices. |
| Size & Weight | Larger (21x70mm) and heavier than 18650. | Incompatible with legacy designs; adds weight to portable electronics. |
| Cycle Life | Higher capacity can mean lower cycle life. | May not be suitable for applications requiring very long-term reliability. |
For specific application scenarios, when should 21700 batteries be prioritized over 18650 batteries?
Choosing the wrong battery can make your product underperform or be too expensive. This uncertainty costs you time and money. I will give you a clear guide for making the right choice.
Prioritize 21700 batteries for high-capacity, power-hungry applications like electric vehicles, power tools, and energy storage systems where system cost and energy density are critical. Stick with 18650s for compact devices or where thermal performance is the top priority.
The decision between a 21700 and an 18650 battery always comes down to the specific needs of the application. There is no one-size-fits-all answer. Based on my experience helping hundreds of clients, here is how I break down the decision-making process.
When to Choose the 21700
You should seriously consider the 21700 cell when your primary goals are maximizing runtime and power output while minimizing system cost.
- Electric Vehicles (EVs) and E-Bikes: These applications need the highest possible energy density to extend range. The system-level cost and weight savings from using fewer cells make the 21700 a clear winner.
- Cordless Power Tools: Tools like drills and saws demand very high power output. The lower internal resistance of many 21700 cells makes them ideal for these high-drain applications.
- Large Power Banks and Home Energy Storage: For these devices, total capacity is the most important metric. The higher capacity of 21700 cells simplifies pack construction and reduces overall cost per watt-hour.
When to Stick with the 18650
The 18650 remains the champion for applications where size, weight, and a proven track record are the most important factors.
- Compact Consumer Electronics: Think of small flashlights, vaping devices, or portable Bluetooth speakers. The smaller form factor of the 18650 is essential for keeping these products compact.
- Legacy Products: If you have a product already designed around the 18650, the cost of re-engineering the device to fit a 21700 is often not worth the performance gain.
- High-Rate Applications with Limited Airflow: For some drones or enclosed medical devices, the superior heat dissipation of the 18650 can be a critical safety feature.
| Application | Recommended Battery | Key Reason |
|---|---|---|
| Electric Vehicles (EVs) | 21700 | High energy density for range, lower system cost. |
| Power Tools | 21700 | High power output and good capacity. |
| Home Energy Storage | 21700 | Excellent capacity and cost per Wh. |
| Compact Flashlights | 18650 | Smaller size fits compact designs. |
| Medical/Wearable Devices | Depends (Often custom) | Size, weight, and thermal safety are critical. |
| RC Models / Drones | 18650 | Better heat dissipation under high discharge rates. |
Is there a technological trend indicating that 21700 batteries will completely replace 18650 batteries?
Are you worried the 18650 battery will soon be obsolete? Investing in a dying technology is a costly mistake. Let's look at the future of these two popular formats.
No, the 21700 battery is unlikely to completely replace the 18650. The 18650 remains the best choice for countless size-constrained applications. The 21700 is a cost-effective upgrade for specific high-capacity and high-power markets, not a universal replacement for all devices.
It's natural to think that a newer, more powerful technology will make the old one obsolete. However, that is not the case with the 21700 and 18650 battery formats. It is better to think of them as two different tools for two different jobs. The 21700 is an evolution, not a revolution. It uses the same fundamental lithium-ion chemistry as the 18650 but in a larger package.
The Power of an Established Ecosystem
The 18650 format has been the industry standard for decades. Billions of devices have been designed to use it. This means there is a massive, mature, and highly efficient global supply chain for 18650 cells. This keeps costs down and availability high. This powerful inertia ensures that the 18650 will remain relevant for many years to come, especially for products that don't need the absolute highest energy density.
Coexistence, Not Replacement
The future is one of coexistence. The 21700 will continue to dominate in new designs for EVs, energy storage, and high-performance power tools. Its advantages in these areas are too significant to ignore. At the same time, the 18650 will remain the go-to workhorse for a vast range of smaller consumer electronics, medical devices, and other applications where its compact size and proven reliability are paramount. I often use a simple analogy with my clients: a large screw used to build a house doesn't make a small screw for fixing eyeglasses obsolete. You need the right tool for the job. The same is true for batteries.
Conclusion
The 21700 battery offers impressive gains in capacity and system efficiency, making it ideal for power-hungry applications. However, the classic 18650 still excels in compact designs due to its size and better thermal management. The right choice always depends on your specific product needs.
