Premium 3.7V Li-Polymer Battery Solutions
Core Advantages
- High Energy Density: 100-265 Wh/kg provides maximum power in a compact, lightweight footprint.
- Flexible Form Factor: Pouch-cell construction allows for custom shapes and sizes to fit unique device requirements.
- Lightweight Design: No rigid metal casing; ideal for weight-critical applications like drones and wearables.
- Reliable Durability: Supports hundreds to thousands of charge cycles with robust performance over time.
- Global Compliance: We can arrange UL, CE, UN38.3, or IEC62133 certifications to match your project needs. For models already certified, you enjoy faster delivery and cost savings.
Technical Capabilities
We provide full OEM/ODM support, including:
- Custom Dimensions: Tailored Thickness, Width, and Length.
- Safety Integration: Integrated Protection Circuit (PCM) & NTC Thermistors.
- Connectivity: Customized connectors and wire leads.

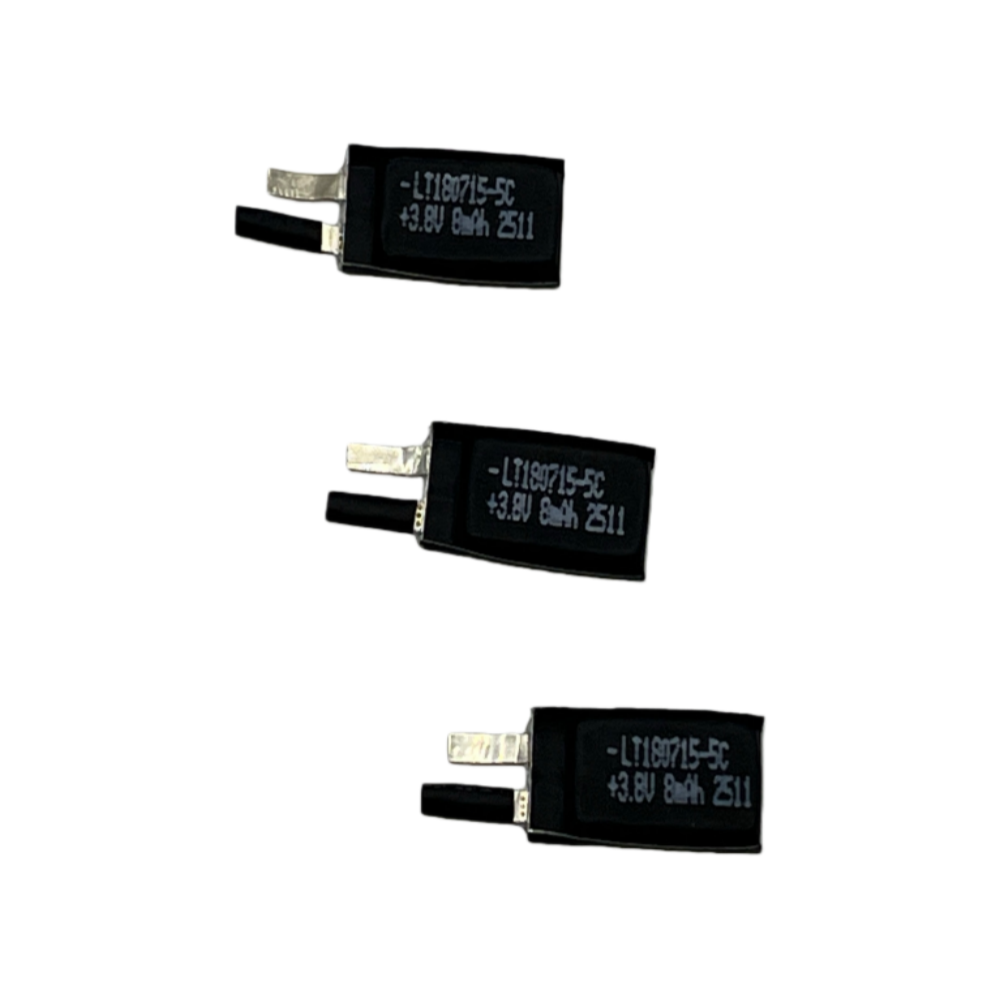

Specifications
| Battery Type | LiPo |
| Part Number | LT 180715 |
| Configuration | - |
| Certification | Customizable upon request |
| Voltage | 3.8 V |
| Capacity | 8 mAh |
| Watt Hour Rating | 0.03 Wh |
| Cycle Life | ≥500 cycles @ 80% |

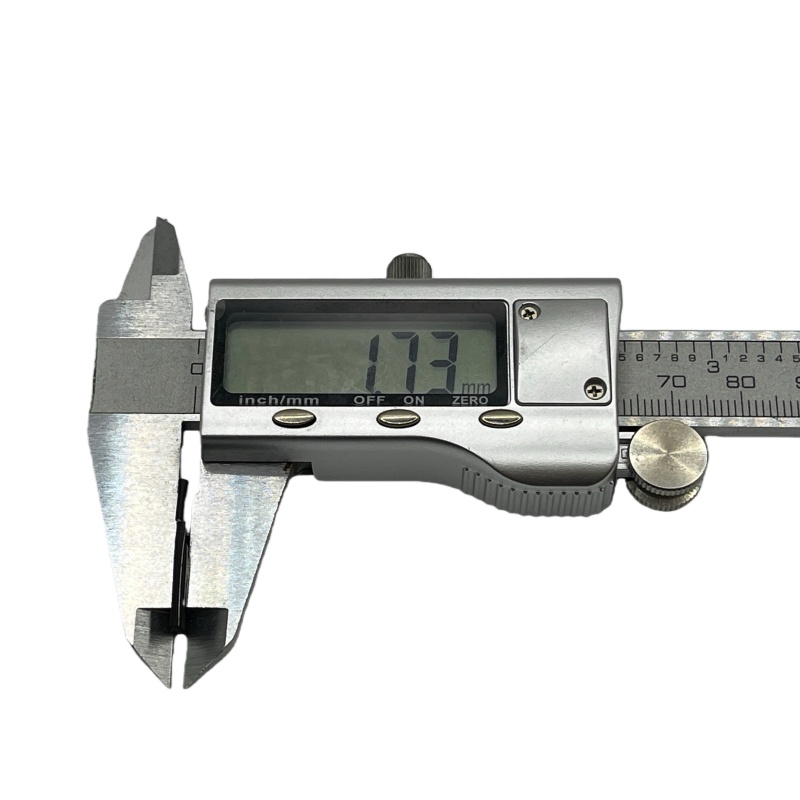

| Thickness | 1.8 mm |

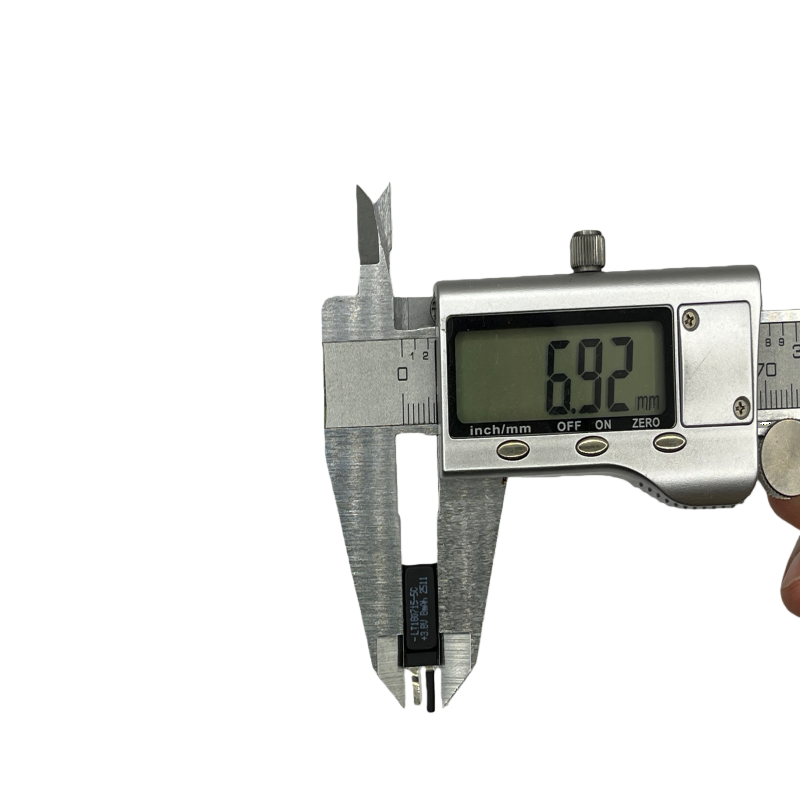

| Width | 7 mm |

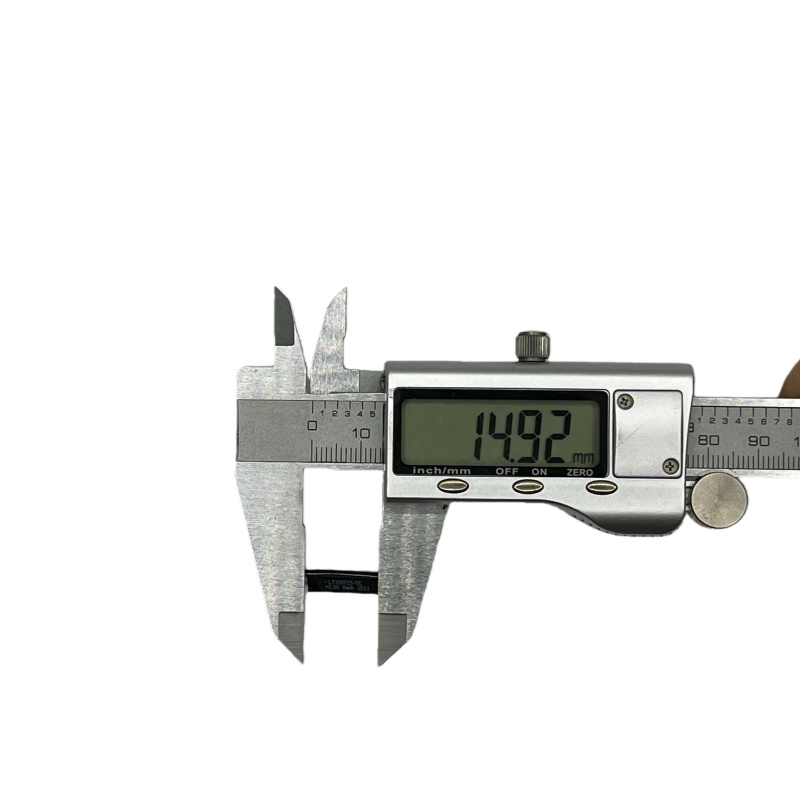

| Length | 15 mm |
| Weight | about 0.4 g |
| Wires and Cables | No |
| Connector | Optional |
| Max Charge Voltage | 4.35 V |
| Charge/Discharge Current | 1.6mA/4mA |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20℃~60℃ |
| Protection Circuit | No |
| Application Scenarios | Wearable Devices, Medical Devices, IoT Devices |
Related Products
3.7V 30mAh LT 012323 LiPo Battery
Voltage&Capacity: 3.7V@30mAh
Watt-Hour Rating: 0.11Wh
Cycle Life: ≥500 cycles @ 80%
Dimension: 1×23×23mm
Weight: about 2g

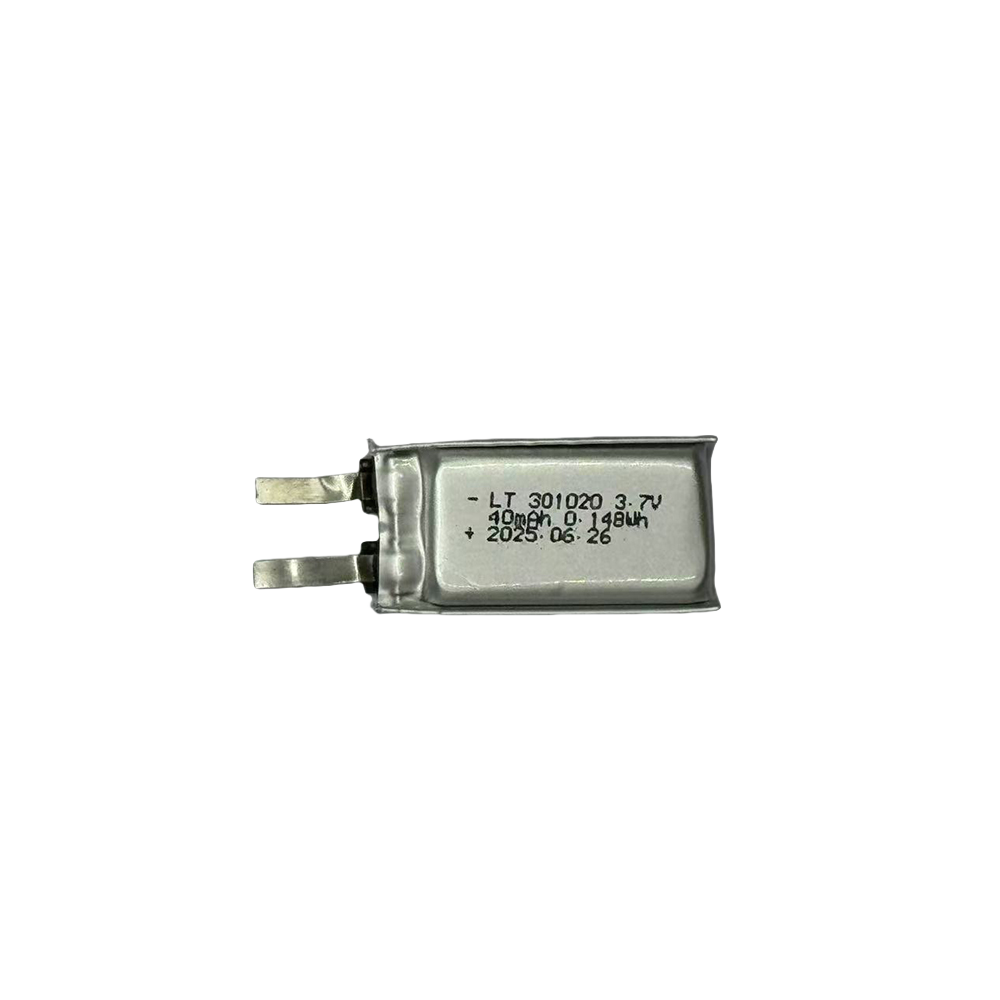

3.7V 40mAh LT 301020 LiPo Battery
Voltage&Capacity: 3.7V@40mAh
Watt-Hour Rating: 0.148Wh
Cycle Life: ≥500 cycles @ 80%
Dimension: 3×9×20mm
Weight: about 1.2g
3.8V 22mAh LT 151520 LiPo Battery
Voltage&Capacity: 3.8V@22mAh
Watt-Hour Rating: 0.0836Wh
Cycle Life: ≥500 cycles @ 80%
Dimension: 1.5×15×20mm
Weight: about 0.8g

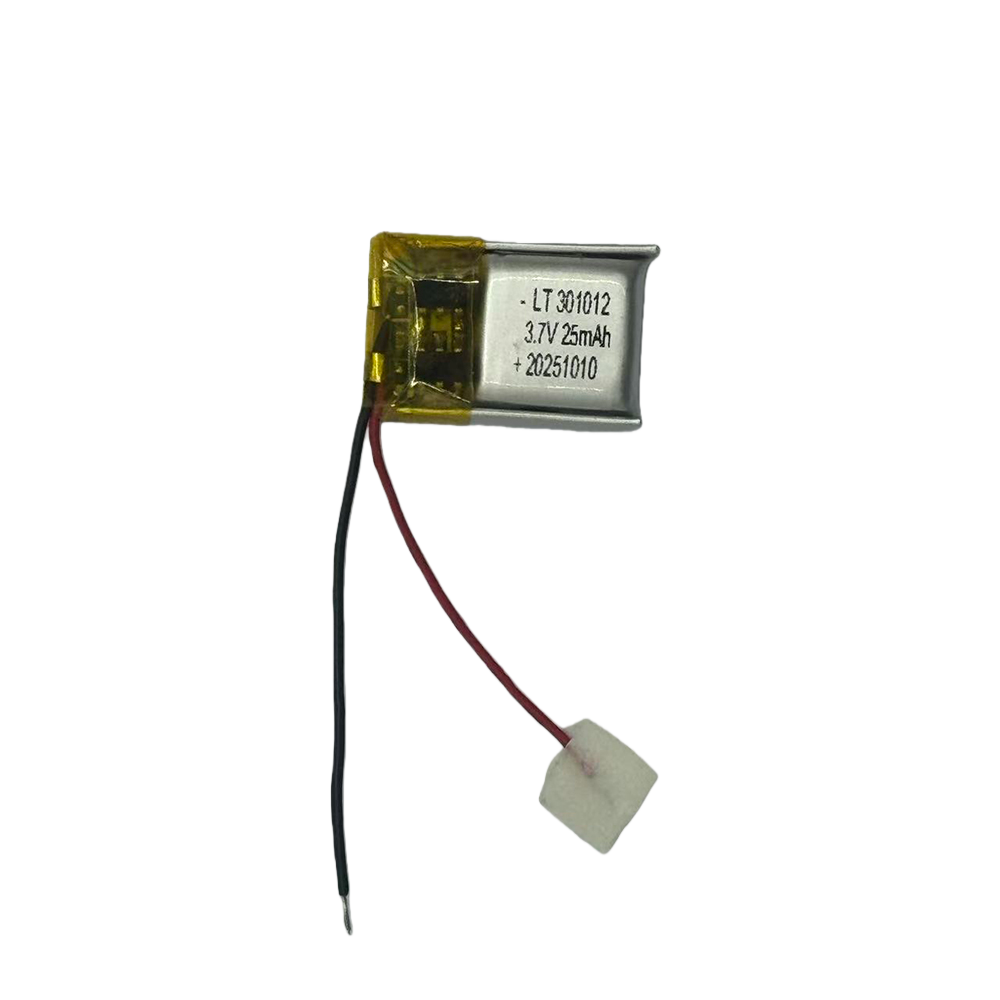

3.7V 25mAh LT 301012 LiPo Battery
Voltage&Capacity: 3.7V@25mAh
Watt-Hour Rating: 0.093Wh
Cycle Life: ≥500 cycles @ 80%
Dimension: 3×10×12mm
Weight: about 0.6g
3.7V 180mAh LT 203038 LiPo Battery
Voltage&Capacity: 3.7V@180mAh
Watt-Hour Rating: 0.67Wh
Cycle Life: ≥500 cycles @ 80%
Dimension: 2×28×37mm
Weight: about 3.8g

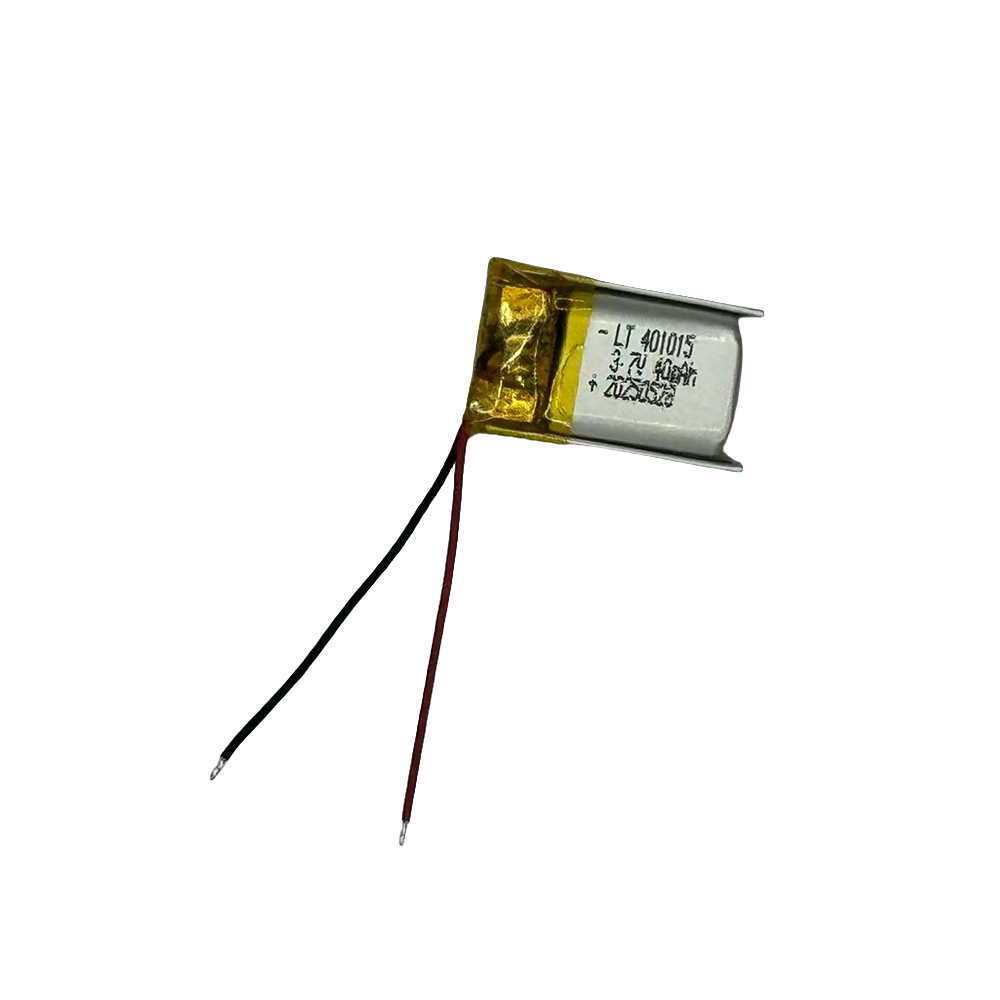

3.7V 40mAh LT 401015 LiPo Battery
