16340
Premium 3.7V Li-Polymer Battery Solutions
Core Advantages
- High Energy Density: 100-265 Wh/kg provides maximum power in a compact, lightweight footprint.
- Flexible Form Factor: Pouch-cell construction allows for custom shapes and sizes to fit unique device requirements.
- Lightweight Design: No rigid metal casing; ideal for weight-critical applications like drones and wearables.
- Reliable Durability: Supports hundreds to thousands of charge cycles with robust performance over time.
- Global Compliance: We can arrange UL, CE, UN38.3, or IEC62133 certifications to match your project needs. For models already certified, you enjoy faster delivery and cost savings.
Technical Capabilities
We provide full OEM/ODM support, including:
- Custom Dimensions: Tailored Thickness, Width, and Length.
- Safety Integration: Integrated Protection Circuit (PCM) & NTC Thermistors.
- Connectivity: Customized connectors and wire leads.
Specifications
| Battery Type | Li-ion |
| Part Number | LT 16340 |
| Configuration | 1S1P |
| Certification | CE, RoHS |
| Voltage | 3.7 V |
| Capacity | 800 mAh |
| Watt Hour Rating | 2.96 Wh |
| Cycle Life | ≥500 cycles @ 80% |
| Thickness | 16 mm |

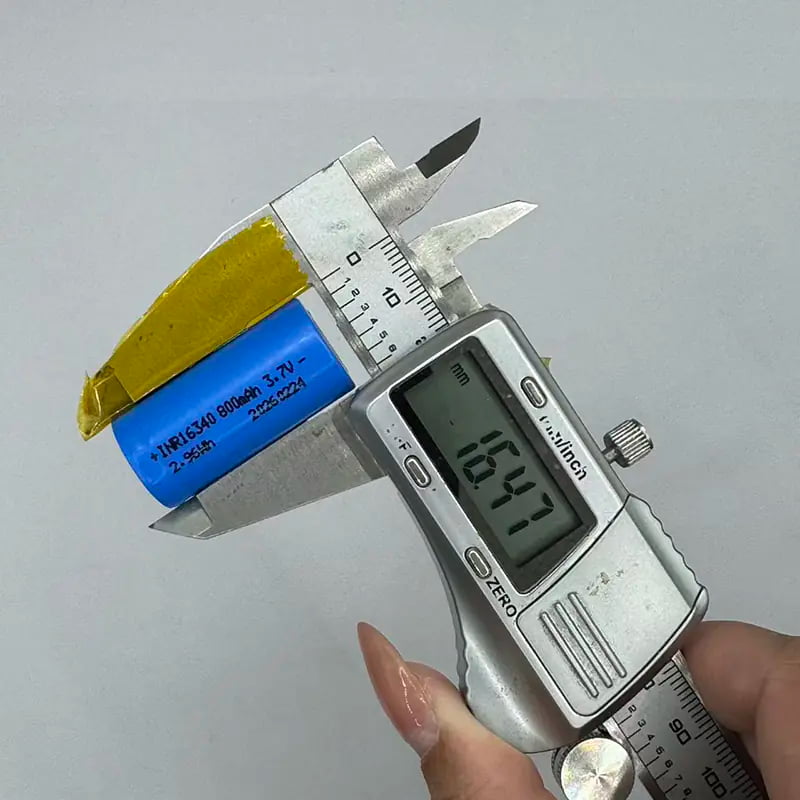

| Width | 16 mm |

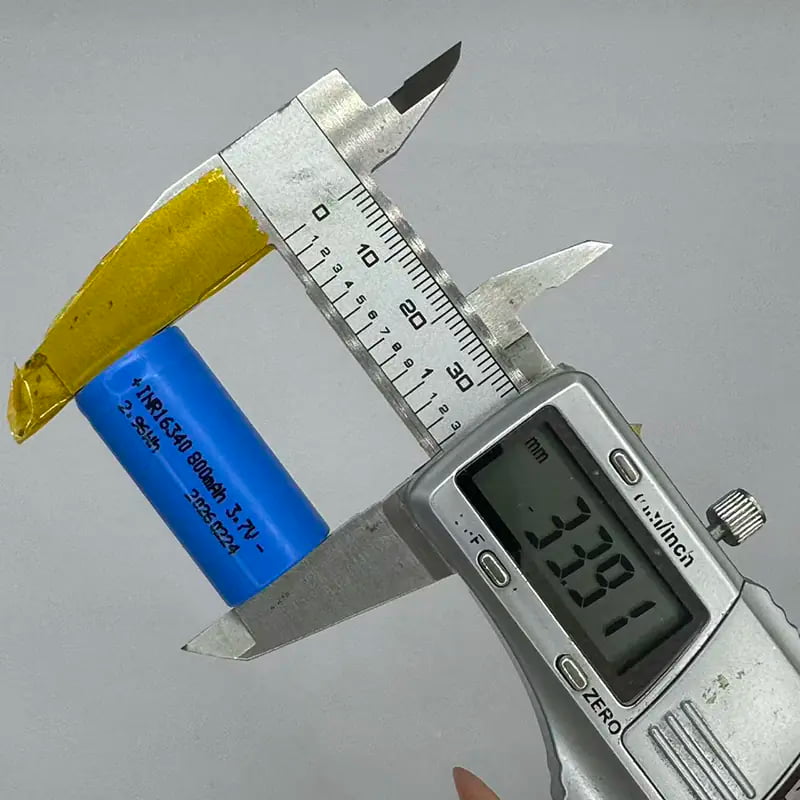

| Length | 34 mm |
| Weight | about 16 g |
| Wires and Cables | No |
| Connector | Optional: JST, Molex, Hirose, etc. |
| Max Charge Voltage | 4.2 V |
| Charge/Discharge Current | 0.2C-1C |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| Protection Circuit | No |
| Application Scenarios | Wearable Devices, Medical Devices, IoT Devices |
