How Do You Match Battery Specifications to Your Device Requirements?

Choosing the wrong battery can damage your device or limit its performance. This mistake leads to costly failures and unhappy customers. Let’s make sure you select the perfect power source.

To match a battery to your device, first define the required voltage (V), capacity (Ah), and maximum discharge current (C-rate)¹. Then, consider physical dimensions, connector type, and operating environment. Balancing these core specifications ensures your device operates safely, efficiently, and for the desired duration.

Getting the battery specifications right is the foundation of a successful product. I've seen many projects stall because of a last-minute power issue. A battery isn't just a component; it's the heart of your device. It dictates how long it runs, how well it performs under pressure, and even its physical shape. In the following sections, we'll walk through the exact steps to define your power needs, so you can avoid common pitfalls and choose a battery that truly powers your innovation.

What are the key steps to determine the required voltage, capacity (Ah), and maximum discharge current (A/C-rate) for your device?

Are you unsure about your device's exact power needs? Guessing can lead to poor performance or even create safety hazards. Here are the key steps to define your battery requirements accurately.

First, analyze your device's operating voltage range. Next, calculate total power consumption over your desired runtime to determine the necessary capacity. Finally, identify the peak current draw to select a battery with the right C-rate. These three steps are essential for reliable performance.

Defining your battery needs is a systematic process. I always tell my clients to break it down into three manageable parts. This approach removes guesswork and builds a solid foundation for your product design. Let's look at each step more closely.

Step 1: Pinpoint the Voltage (V)

The battery's voltage must be compatible with your device's electronics. Check your device's technical datasheet for its specified input voltage range. For example, if your device runs between 3.0V and 4.2V, a standard single-cell lithium-ion battery is a perfect fit. If you need a higher voltage, you'll need a battery pack with multiple cells connected in series. A good rule of thumb is to have your battery pack's voltage slightly higher than the device's requirement and use a step-down (buck) converter. This is generally more efficient than using a lower voltage battery and a step-up (boost) converter.

Step 2: Calculate the Capacity (Ah)

Capacity determines how long your device will run. First, figure out the total energy your device needs. You can do this with a simple formula: Total Energy (Wh) = Average Power (W) × Desired Runtime (h). Once you have the total energy in watt-hours (Wh), you can calculate the required capacity in amp-hours (Ah) by dividing by the battery's nominal voltage: Capacity (Ah) = Total Energy (Wh) / Nominal Voltage (V). I always recommend adding a 10-20% buffer to this number. This accounts for unexpected power spikes and the natural capacity loss as the battery ages.

Step 3: Define the Discharge Current (C-rate)

The C-rate tells you how fast a battery can be discharged safely. You need to know your device's peak current draw. This is the maximum amount of electricity it needs at any single moment. For devices with low, steady power needs like an IoT sensor, a standard "capacity-type" battery with a 1C discharge rate is usually enough. But for a device like a medical drill that needs a sudden burst of power, you'll need a "power-type" battery that can handle a high C-rate, like 10C or more. Keep in mind that high-rate discharge can reduce the battery's effective capacity.

What happens if the new battery's voltage (V) doesn't perfectly match the device's required voltage?

Found a battery with the right capacity but the wrong voltage? A small mismatch can cause big problems, from inefficiency to complete device failure. Let's explore the consequences of voltage incompatibility.

If the battery voltage is too low, your device may not turn on or will perform poorly. If the voltage is too high, you risk permanently damaging sensitive electronic components. Always operate within the device's specified voltage range to ensure both safety and proper function.

Voltage is not a specification where you can "get close." In my experience, even a slight deviation outside the designed range can lead to serious issues. I've seen promising prototypes fail for this very reason. It's a critical parameter that directly affects the health and performance of your device's electronics. The problems that arise depend on whether the voltage is too low or too high.

When the Battery Voltage is Too Low

If a battery's voltage is below the minimum required by your device, one of two things will happen. The most likely outcome is that the device simply won't turn on. Its internal power management circuits will recognize the voltage is out of spec and prevent operation to protect the system. In another scenario, the device might try to power on but will function erratically. It might also attempt to draw more current to compensate for the low voltage (since Power = Voltage × Current). This increased current can cause both the battery and the device's circuitry to overheat, leading to reduced efficiency and a shorter lifespan for both components.

When the Battery Voltage is Too High

This is the more dangerous scenario. Supplying a voltage that is higher than the device's maximum rating can instantly destroy sensitive components. Components like microcontrollers, sensors, and processors are designed to operate within a very narrow voltage window. Exceeding this can cause irreversible damage, essentially "frying" the circuit board. Even if the damage isn't immediate, over-voltage will stress the components, leading to premature failure. This is why you must always check the absolute maximum voltage rating in your device's datasheet and never exceed it.

How do I determine if my device needs a high energy density or a high power density battery?

Is longer runtime always better than faster power delivery? Choosing the wrong priority can leave your high-performance device sluggish or your long-life device dying too soon. Let's clarify when to prioritize energy versus power.

Choose a high energy density battery (more mAh in a smaller size) for devices needing long, steady runtimes, like IoT sensors. Opt for a high power density battery (high C-rate) for devices requiring short bursts of intense power, like drones or medical power tools.

This question is about understanding your device's primary function. It’s a classic engineering trade-off. You rarely get the best of both worlds, so you have to prioritize what’s most important for your user's experience. In our work at Litop, especially with medical and wearable devices, we help customers navigate this decision every day. It all comes down to how your device uses power.

When to Prioritize High Energy Density

Energy density (measured in Wh/kg or Wh/L) is all about runtime. It tells you how much energy a battery can store for its size or weight. If your product needs to last for hours, days, or even weeks on a single charge with a relatively low and consistent current draw, you need a high energy density battery. Think of devices like:

• Wearable fitness trackers
• Remote environmental sensors
• Bluetooth headsets
• Portable medical monitors

For these applications, the goal is to pack as much capacity (mAh) as possible into a compact and lightweight form factor. The discharge current is not the main concern.

When to Prioritize High Power Density

Power density (measured in W/kg or W/L) is all about speed and strength. It tells you how quickly a battery can deliver its stored energy. If your product needs to perform power-intensive tasks that require large, sudden bursts of current, you need a high power density battery. These batteries are designed for high discharge rates (high C-rates). Examples include:

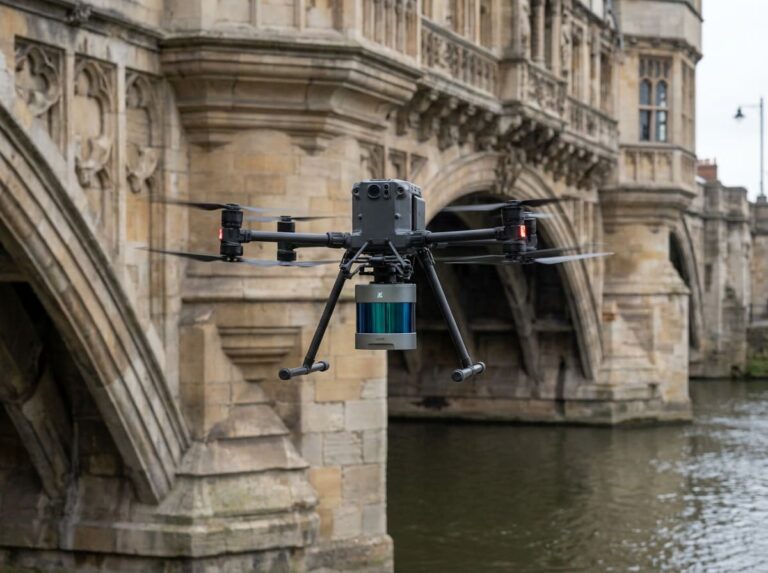

• Drones for rapid ascent
• Medical power drills
• High-performance vape devices
• Cordless power tools

For these devices, the ability to deliver peak power is more critical than having the longest possible runtime. The trade-off is that these high-power cells often have a lower total capacity than energy-focused cells of the same size.

Besides voltage and capacity, what other physical dimensions, connector types, or BMS protocols should I pay special attention to when buying a replacement battery?

You found a battery with the right voltage and capacity. But if it doesn't fit, connect, or communicate properly with your device, it's completely useless. Let's cover the critical details beyond the core specs.

Always verify the battery's physical dimensions (L x W x H) to ensure a proper fit. Check that the connector type and wire polarity match exactly. For smart devices, confirm the Battery Management System (BMS) communication protocol² (e.g., I2C, SMBus) is compatible.

After you've sorted out the core electrical requirements, the job is only half done. The "perfect" battery on paper means nothing if it doesn't physically and electronically integrate with your device. These practical details are often where projects hit unexpected roadblocks. I've learned from experience to treat these secondary checks with the same importance as voltage and capacity.

Physical Dimensions and Form Factor

The most basic check is whether the battery will fit. Measure the battery compartment in your device precisely—length, width, and height. Leave a little extra room for wiring and to allow for minor swelling that can occur over the battery's life. This is especially important for products with very tight space constraints, like modern wearables or medical devices. This is where we at Litop often help. If a standard rectangular battery won't fit, we can design custom-shaped batteries³—like curved, ultra-thin, or other irregular shapes—to fit perfectly into unique product designs.

Connectors and Wiring

Next, look at the connector. There are hundreds of types, such as JST, Molex, and I-PEX. It must be an exact match to plug into your device. Even more critical is the wiring polarity. You have to confirm that the positive (+) and negative (-) wires on the battery connector align with the corresponding terminals on your device. A reversed polarity connection, even for a split second, can send current the wrong way and instantly destroy your device's main circuit board. Always double-check.

BMS Communication Protocol

For many modern smart devices, the battery does more than just provide power. It communicates. The Battery Management System (BMS) inside the battery pack talks to the host device, providing real-time data like state-of-charge (%), remaining capacity, temperature, and cycle count. This communication happens over a specific protocol, such as SMBus, I2C, or HDQ. If your new battery's BMS uses a different protocol than what your device expects, they won't be able to talk to each other. Your device may refuse to charge the battery or even fail to power on, even if the voltage and capacity are correct.

Conclusion

Matching a battery to your device involves balancing voltage, capacity, and discharge rate with physical fit and system communication. Getting this right is crucial for performance, safety, and reliability. By following these steps, you can ensure you choose the best possible power source for your product.
