Struggling with batteries failing in marine settings? The harsh salt and moisture can ruin standard power sources, leading to costly failures and safety risks. Choosing the right battery is critical.
Marine environments drastically shorten lithium battery life through saltwater corrosion, constant vibration, and high humidity. These factors degrade internal components, compromise seals, and can lead to short circuits or complete failure if the battery isn't specifically designed and certified for marine applications.
It's not just about getting splashed by a big wave. The challenges are much deeper and more subtle than most people think. I’ve spoken with many clients, like Michael from the U.S., who learned the hard way that a standard "waterproof" label means very little when you're out at sea. The constant exposure to a corrosive, vibrating environment requires a completely different approach to battery design. Let's break down exactly what you're up against and how to protect your investment.
What happens to lithium batteries in saltwater?
Your equipment is exposed to corrosive saltwater. A small leak in a standard battery can lead to catastrophic failure and fire. You need much more than just a waterproof case.

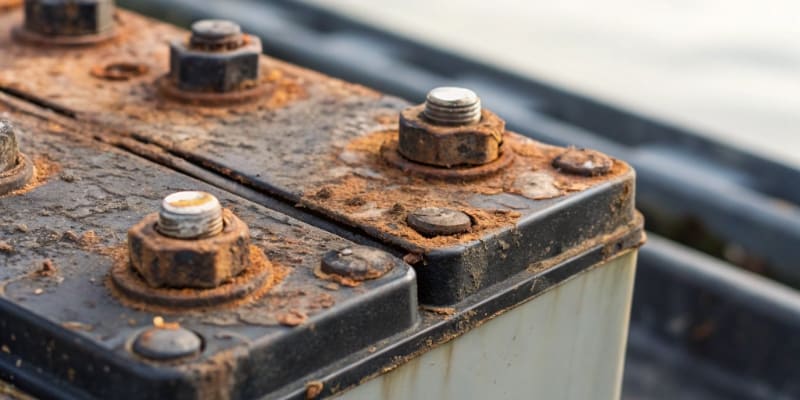

Saltwater causes rapid corrosion on battery terminals and external components. Its high conductivity can create short circuits if it breaches the battery's casing, leading to overheating, fire, or permanent damage. Even salt spray in the air can degrade seals and connections over time.
When we talk about saltwater damage, most people picture a battery falling into the ocean. The reality is that the most common enemy is the air itself. Salt fog, or salt spray, is a fine mist of saltwater that gets everywhere. It settles on surfaces and, over time, works its way into the smallest cracks and seams. This is where my first insight comes from: even the best waterproof battery can fail if it's not designed to resist salt fog.
I remember a case where a client developing a marine GPS tracker used a battery with an IP67 rating, which should be fine for temporary immersion. But after six months in the field, units started failing. The problem wasn't water getting inside the main case. It was the charging port. The metallic contacts had corroded from constant exposure to the salty air, preventing the device from charging.
Here’s a breakdown of what happens:
The Science of Corrosion
Saltwater is an electrolyte, meaning it conducts electricity very well. When it comes into contact with two different metals (like those on a connector), it creates a galvanic cell, which is essentially a tiny battery. This process, called galvanic corrosion, rapidly eats away at the less noble metal.
Beyond the IP Rating
An IP rating tells you how well a casing protects against dust and water ingress under test conditions. It does not tell you anything about long-term corrosion resistance. That’s why you must ask for specific test reports.
| Feature | Standard Waterproof Battery | True Marine-Grade Battery |
|---|---|---|
| Casing Material | Standard ABS or Polycarbonate | UV-stabilized, corrosion-resistant polymer |
| Connectors | Standard nickel-plated brass | 316 Stainless Steel or gold-plated contacts |
| Seals | Standard silicone gaskets | Gaskets made from salt-resistant materials |
| Testing | IP67/IP68 water immersion test | IP67/IP68 test plus Salt Spray Test (e.g., ASTM B117) |
When you source batteries for a marine application, don't just ask "Is it waterproof?". Ask, "Have you passed a 96-hour salt spray test? Can I see the report?" This simple question separates the serious suppliers from the rest.
What is the problem with lithium batteries in boats?
Boats are not stable platforms. The constant vibration and slamming from waves can damage a battery from the inside out. A robust internal structure is absolutely essential for survival.
The main problem with lithium batteries on boats is the constant vibration and mechanical shock. This physical stress can loosen internal connections, crack cell casings, and damage the Battery Management System (BMS)1, leading to performance issues, reduced lifespan, or dangerous failures.
A battery might look like a solid block, but inside it's a complex assembly of cells, wires, and electronics. On land, this assembly is perfectly stable. But on a boat, it's subjected to thousands of micro-shocks and vibrations every hour. Over weeks and months, this can be just as destructive as a physical drop.
This brings me to my second key insight: certification matters. A few years ago, we worked with a European company building autonomous marine research buoys. They initially used a battery from a supplier who claimed their packs were "ruggedized." But they had no official certifications. The first prototypes failed within a year because the vibrations caused the welds connecting the battery cells to break. The supplier's response? "It's not our fault, the environment is too harsh."
This is why marine classification societies like DNV, Lloyd's Register, or ABS exist. They have created specific standards for equipment used on ships and offshore platforms. These standards include rigorous vibration, shock, and humidity tests that simulate years of life at sea. A battery that has passed these tests is proven to be reliable. If a supplier tells you their battery is "marine-grade" but can't produce a certificate from an accredited body, you should be very skeptical. Without that certification, if a battery-related incident occurs, your insurance may not cover the damages.
Here's how we build a battery to withstand this environment:

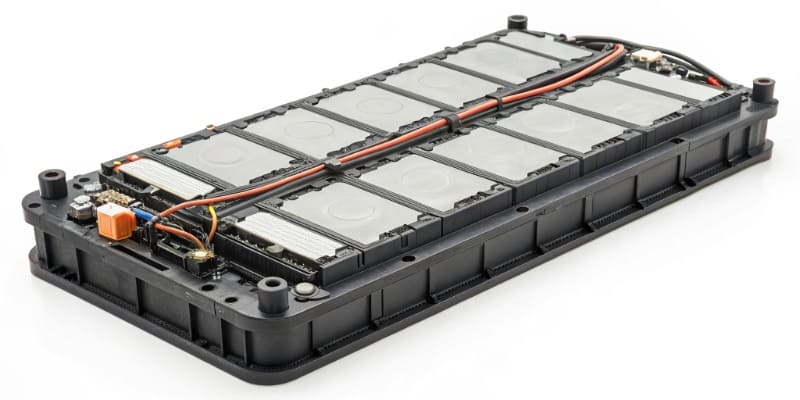

Internal Construction Differences
| Component | Standard Battery Pack | Marine-Grade Battery Pack |
|---|---|---|
| Cell Holders | Simple plastic spacers, or cells taped together. | Custom-molded, shock-absorbing holders for each cell. |
| Connections | Standard spot welding for cell tabs. | Laser welding with reinforced tabs for superior strength. |
| BMS Mounting | Often just taped or glued to the pack. | Securely bolted and often potted in epoxy. |
| Void Filling | Air gaps left inside the casing. | Injected with flexible, non-conductive potting compound. |
The potting compound is key. It's a liquid resin that is poured into the battery casing and then hardens. This encases all the components, turning the entire battery into a single, solid, vibration-proof block. It also adds another layer of protection against moisture. It costs more, but it’s the only way to guarantee reliability in a high-vibration environment.
What is the 80 20 rule for lithium batteries?
You want your expensive marine batteries to last as long as possible. But common charging habits can kill them much faster than you think. A simple rule can dramatically extend their life.
The 80/20 rule for lithium batteries suggests you can significantly extend their lifespan by keeping the state of charge between 20% and 80%. Avoiding full 100% charges and deep discharges reduces stress on the battery's chemistry, slowing down capacity degradation.
This rule might sound counterintuitive. Why buy a 100Ah battery if you only plan to use 60Ah of it? The answer is cycle life. A lithium-ion battery's lifespan isn't measured in years, but in charge cycles. The 80/20 rule is all about getting the maximum number of cycles out of your investment.
Think of a battery like a rubber band. You can stretch it to its absolute limit, but if you do that every time, it will wear out and snap much faster. If you only stretch it part of the way, it will last much, much longer. It's the same with a battery's state of charge. Pushing it to 100% or draining it to 0% puts maximum stress on the internal chemistry.
Here's how the depth of discharge (DoD) affects cycle life for a typical LiFePO4 battery, which is common in marine applications:
| Depth of Discharge (DoD) | State of Charge Range | Expected Cycle Life |
|---|---|---|
| 100% | 0% - 100% | ~2,000 cycles |
| 80% | 20% - 100% | ~3,500 cycles |
| 60% (The 80/20 Rule) | 20% - 80% | ~6,000+ cycles |
| 50% | 25% - 75% | ~7,500+ cycles |
As you can see, by simply avoiding the extremes, you can potentially triple the useful life of your battery pack. For a large, expensive marine battery bank, this translates into thousands of dollars in savings.
How do you apply this in the real world? This is where a high-quality Battery Management System (BMS) is essential. A programmable BMS, like the ones we design at Litop, can be configured to manage this automatically. You can set the charger to stop at 80% and have the system trigger a low-power warning or shut down non-essential loads when the battery hits 20%. This takes the guesswork out of it and ensures your battery is always operating in its sweet spot. It's a feature that adds immense value and is a key part of a professionally designed marine power system.

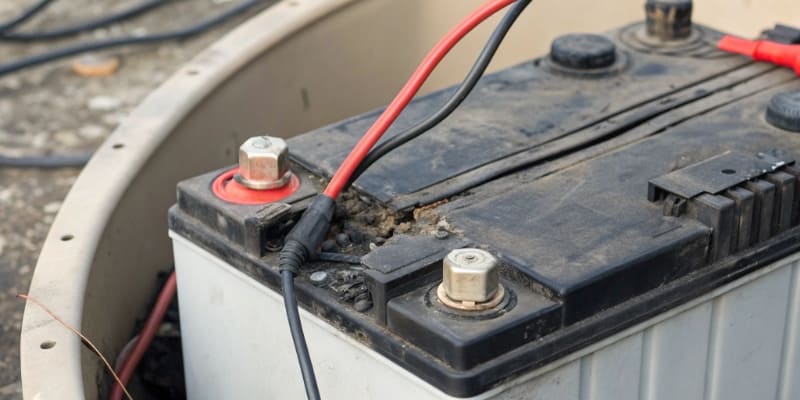

What shortens the life of a lithium-ion battery?
Many factors can kill a battery prematurely. If you ignore them, you will find yourself replacing expensive battery packs far too often. Knowing the top "battery killers" is the first step to avoiding them.
The main factors that shorten a lithium-ion battery's life are high temperatures2, deep discharging, overcharging, high charge/discharge currents, and mechanical stress. Each of these accelerates the chemical degradation of the battery's internal components, permanently reducing its capacity.
A battery's life is a battle against chemistry. From the moment it's manufactured, irreversible chemical reactions begin to slowly reduce its ability to store energy. Our job as engineers is to design batteries that slow this process down, and your job as a user is to operate them in a way that doesn't speed it up. Here are the main enemies of battery longevity, especially in a marine context:
1. High Temperature
Heat is the number one killer of lithium batteries. For every 10°C (18°F) increase above its ideal operating temperature (around 25°C or 77°F), the rate of chemical degradation roughly doubles. On a boat, batteries are often installed in engine compartments or poorly ventilated lockers where temperatures can soar. A quality BMS will have temperature sensors and will reduce charging or discharging currents, or even shut down completely, if the battery gets too hot.
2. Low Temperature
While not as destructive as heat, operating at low temperatures also causes problems. Discharging in the cold is generally fine, although you'll get less capacity. The real danger is charging below freezing (0°C or 32°F). This can cause a phenomenon called lithium plating, where metallic lithium builds up on the anode. This is permanent, reduces capacity, and can create a serious safety hazard. A marine BMS must have low-temperature charge protection.
3. High Currents
Drawing too much power (high discharge current) or charging too fast (high charge current) puts a lot of stress on the battery. It generates internal heat and accelerates wear on the chemical components. The battery's C-rating tells you the maximum safe current. It's always best to operate well within that limit.
4. State of Charge Extremes
As we discussed with the 80/20 rule, keeping a battery fully charged or fully discharged is very stressful for its chemistry. Storing a battery at 100% charge, especially in a warm environment, is one of the fastest ways to degrade it.
5. Mechanical Stress
This brings us back to where we started. The constant vibration and shocks on a boat are a form of mechanical stress that can break down the battery's internal structure over time. This is a unique challenge for marine applications that land-based systems don't face.
A well-designed marine battery from a specialist manufacturer like Litop is a complete system engineered to fight all these enemies. It's not just cells in a box; it's a combination of robust mechanical design, advanced thermal management, and an intelligent BMS working together to ensure a long, safe, and reliable life.
Conclusion
Marine environments are uniquely harsh on batteries due to saltwater, vibration, and temperature extremes. To ensure reliability and safety, you must choose batteries with proven resistance to corrosion and shock, backed by official marine certifications. Proper management, like following the 80/20 rule, further extends their life.
