18650 vs 21700 Batteries: Which Should You Choose for Your Application?

Choosing the right battery for your project can be confusing. The wrong decision impacts performance, size, and cost. Let's compare the 18650 and 21700 to find the best fit for you.

The choice depends on your priorities. The 21700 cell offers higher capacity and power density¹, making it ideal for new, high-performance designs. The 18650 remains the best choice for cost-sensitive projects and upgrading existing devices due to its widespread availability and lower per-unit cost.

The decision between a 18650 and a 21700 battery isn't always straightforward. On the surface, one is just bigger than the other. But that size difference creates important trade-offs in performance, cost, and design flexibility. To make the right choice, we need to look closer at what each cell offers and how it matches your specific needs. Let's break down the key differences to help you decide.

How do 21700 batteries outperform 18650s in energy density and runtime?

Your devices need to run longer between charges. You're frustrated when batteries die too quickly, limiting your product's potential. Understanding how 21700 cells boost energy density is the key to longer runtime.

The larger physical volume of a 21700 battery (21mm x 70mm) allows it to hold more active material than a 18650. This results in a single-cell capacity increase of over 35%, boosting the entire battery pack's energy density by about 20% and significantly extending device runtime.

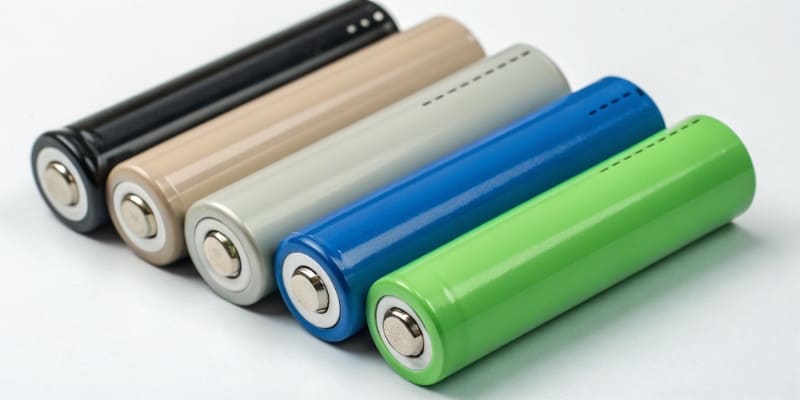

The core difference between these two batteries starts with their names, which simply define their physical dimensions. A 18650 cell is 18mm in diameter and 65mm long. A 21700 cell is 21mm in diameter and 70mm long. This seemingly small increase in size gives the 21700 a huge advantage in volume. This extra space is filled with more energy-storing materials, which directly translates to higher capacity.

Where a typical high-quality 18650 might offer 2.5Ah to 3.0Ah, a 21700 cell of the same chemistry can deliver 3.0Ah to 4.8Ah. That's a massive jump in runtime from a single cell. This benefit grows when you build a larger battery pack. Because each 21700 cell holds more energy, you need fewer of them to reach your target capacity. For a given energy requirement, you might need about one-third fewer 21700 cells compared to 18650s. This has several system-level benefits:

• Simplified Management: Fewer cells mean a simpler and less expensive Battery Management System (BMS)².
• Reduced Complexity: Fewer connections and welds are needed, which lowers internal resistance and reduces potential points of failure.
• Higher System Energy Density: The overall pack becomes lighter and more compact because less space is taken up by casings and wiring. The energy density of a pack can jump from around 250 Wh/kg with 18650s to 300 Wh/kg with 21700s.

Here is a simple breakdown:

For new designs where space allows, choosing the 21700 is a clear path to better performance and longer runtime.

Which battery type delivers a higher maximum power output?

Your high-power device feels sluggish or underpowered. The battery's low discharge rate is limiting its performance, frustrating your users. Let's see which cell type is built to handle high-power demands.

Generally, 21700 cells deliver a higher maximum continuous discharge current. Their larger size, lower internal resistance, and improved thermal properties allow them to supply more power without overheating, making them superior for demanding applications like power tools and electric vehicles.

Power output, or discharge rate, is all about how quickly a battery can release its stored energy. This is critical for applications that need a big burst of power, like a drill starting up or an electric bike accelerating up a hill. The key factor here is internal resistance. A lower internal resistance means less energy is wasted as heat, and more power can be delivered to your device. The 21700 cell, with its updated internal construction and larger format, typically has lower internal resistance than a comparable 18650 cell. This allows it to sustain higher currents for longer periods.

However, there's an interesting trade-off when it comes to heat. While a single 21700 cell manages heat well internally, the smaller 18650 has a better surface-area-to-volume ratio. This means that in a tightly arranged battery pack, a group of 18650s can sometimes be easier to cool with an external system. For this reason, some very high-power applications that produce a lot of heat might still use 18650s if the thermal management system is designed around them. I’ve worked with clients on outdoor power stations where heat dissipation was the number one concern. In some of those cases, the superior cooling profile of a 18650 pack made it the better choice, even though a 21700 cell could deliver more power individually. The final decision often comes down to the specific design of the pack and the device's cooling capabilities.

For most new, high-power designs, the 21700 is the clear winner. But for specialized applications where thermal management is a major challenge, the 18650 remains a very viable option.

Can you upgrade a device from an 18650 to a 21700 battery?

You want to boost your device's battery life. You're wondering if you can just swap out the old 18650 for a newer, more powerful 21700. Let's look at the practical reality of this upgrade.

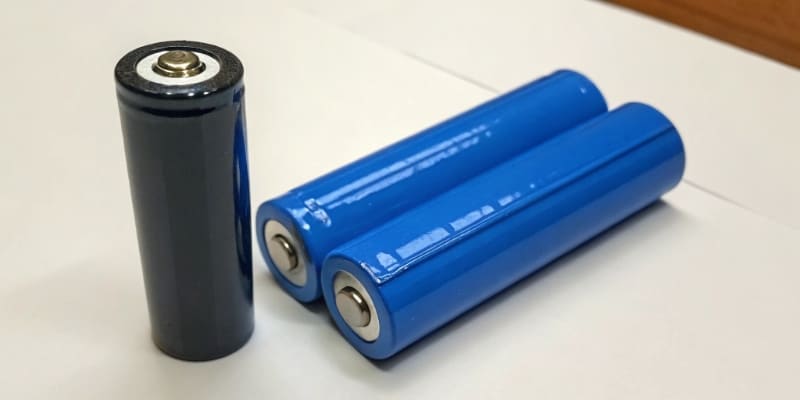

No, you generally cannot directly replace a 18650 battery with a 21700. The physical dimensions are different (21mm x 70mm vs. 18mm x 65mm), so the 21700 cell will not fit into a device designed for a 18650 without significant modification to the device's housing.

This is one of the most common questions I get from customers looking to improve their existing products. The barrier to this upgrade is purely physical. A device's battery compartment is precision-molded to hold a 18650 cell snugly. The 21700 is both wider (by 3mm) and taller (by 5mm), making it impossible to fit. It’s like trying to put a large coffee mug into a cup holder made for a small can of soda—it just won’t go in.

Even if you could somehow make it fit, there are other considerations. The device's charging circuit and BMS are calibrated for the capacity and characteristics of a 18650. Introducing a higher-capacity 21700 cell could lead to improper charging, inaccurate battery level readings, or even safety issues if the system isn't designed to handle it.

The only exception is in a small number of niche products, like some high-end flashlights, that are specifically designed from the factory to accommodate both cell sizes, often using a plastic sleeve or adapter for the smaller 18650. For the vast majority of consumer electronics, medical devices, and other products, this is not the case. When we at Litop work with clients on a new product, this is a critical early decision. If they want the performance benefits of the 21700, the entire physical product must be designed around that cell from the very beginning. An upgrade from an existing 18650-based product line isn't an upgrade; it's a complete redesign.

Which battery is more advantageous for cost and availability?

Your project has a strict budget. You're worried that choosing a newer battery technology might increase costs and cause supply chain problems. Let's compare the cost and market maturity of these two cells.

The 18650 is cheaper per cell and more widely available due to its mature supply chain. However, the 21700 often has a lower cost per watt-hour (Wh)³ and can reduce total system costs in new, large-scale applications because fewer cells are needed for the same energy capacity.

The 18650 has been the king of cylindrical lithium-ion cells for decades. This long history means its manufacturing processes are highly optimized, and a massive, competitive global supply chain exists. This drives the per-cell price down, making it very attractive for projects where every cent counts. You can find 18650s from countless manufacturers, ensuring a stable and reliable supply.

The 21700 is the newer cell on the block. While its adoption is growing rapidly, especially in the EV industry, the manufacturing volume and number of suppliers are still catching up to the 18650. This means the price for a single 21700 cell is typically higher. However, the story changes when you look at the total project cost. Because the 21700 has much higher energy density, its cost per unit of energy (watt-hour) can be 8-10% lower than a 18650.

I recall a client, Michael from the U.S., who was designing a new portable medical device. He initially planned to use 18650 cells because he was familiar with their low unit price. After my team analyzed his power needs, we demonstrated that using 21700s would not only extend the device's runtime by 30% but also reduce the total battery pack cost by simplifying the BMS and assembly. By using fewer cells, he saved on labor and component costs, making the 21700 the more economical choice in the long run.

Your decision should be based on scale and design stage:

• Existing Devices or Small-Scale Projects: The 18650 is often the best choice due to its low per-cell cost and immediate availability.
• New, Large-Scale Production: The 21700 provides better long-term value, lower system-level costs, and superior performance.

Conclusion

The 21700 offers superior energy and power for new designs, while the 18650 excels in cost-effectiveness and compatibility for existing applications. The best choice is not about which battery is better overall, but which is the right fit for your specific project's goals, budget, and design constraints.
